  • TUNGALOY TDX175F25-5 17.5mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

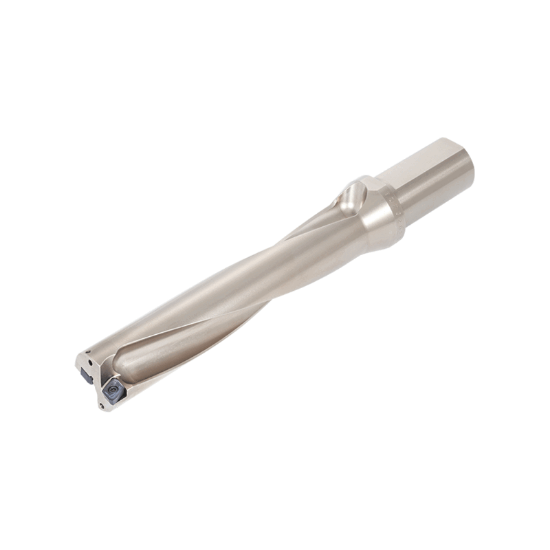

Picture of TUNGALOY TDX175F25-5 17.5mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

TUNGALOY TDX175F25-5 17.5mm TungDrill Twisted Indexable Insert Drill s, L/D=5, Flat cotter

ISO: TDX175F25-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718330
Delivery date: 3-5 days
$632.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.6890 17.50MM
Flute Length 3.4650 88.01MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Dia Deep 5.0XD
Cut Dia Min 0.6890 17.50MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.3386 161.00MM
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
