  • TUNGALOY TDX165F20-4 16.5mm TungDrill Twisted Indexable Insert Drill s, L/D=4, Flat cotter

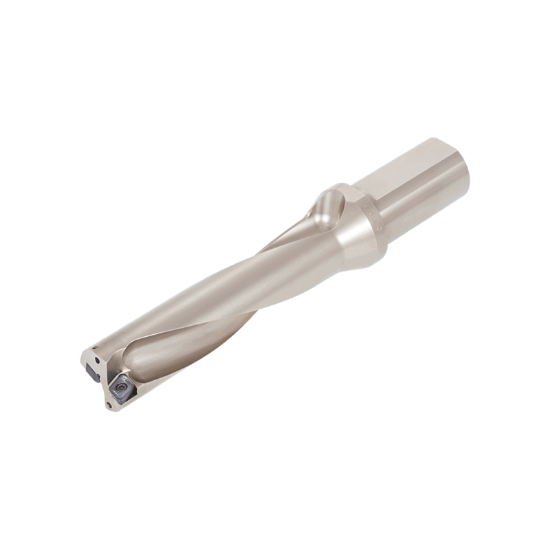

Picture of TUNGALOY TDX165F20-4 16.5mm TungDrill Twisted Indexable Insert Drill s, L/D=4, Flat cotter

TUNGALOY TDX165F20-4 16.5mm TungDrill Twisted Indexable Insert Drill s, L/D=4, Flat cotter

ISO: TDX165F20-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6718321
Delivery date: 3-5 days
$577.30

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cut Dia Min 0.6496 16.50MM
Flutes/Inserts 2
Overall Len 5.2520 133.40MM
Tool Material Steel
Flute Length 2.6140 66.40MM
Cutter Dia 0.6496 16.50MM
Dia Deep 4.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
