  • TUNGALOY TDSU1125-02 1-1/8" TungSix-Drill Indexable Insert Drill s, L/D=2, Whistle notch

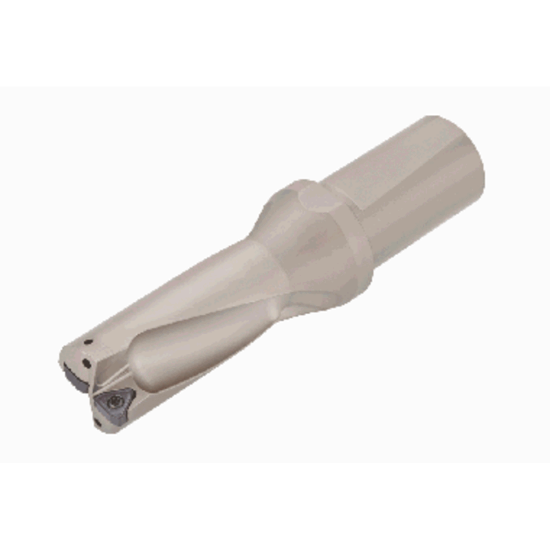

Picture of TUNGALOY TDSU1125-02 1-1/8" TungSix-Drill Indexable Insert Drill s, L/D=2, Whistle notch

TUNGALOY TDSU1125-02 1-1/8" TungSix-Drill Indexable Insert Drill s, L/D=2, Whistle notch

ISO: TDSU1125-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6985612
Delivery date: 3-5 days
$630.45

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Overall Len 5.9350 150.75MM
Flutes/Inserts 2
Cut Dia Min 1.1250 28.58MM - 1-1/8
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.1250 28.58MM - 1-1/8
Dia Deep 2.0XD
Flute Length 2.2930 58.24MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
