  • TUNGALOY TCB500-540F32 Counter Bore Milling Cutter 2.126 Cutter Diameter Weldon 1.2598 6.496 OAL 2 Flute

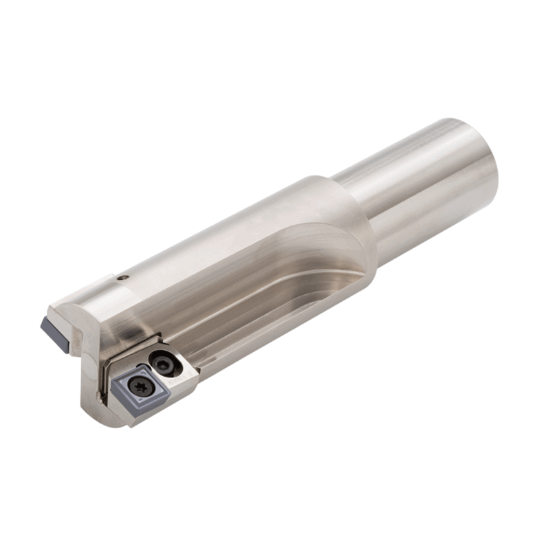

Picture of TUNGALOY TCB500-540F32 Counter Bore Milling Cutter 2.126 Cutter Diameter Weldon 1.2598 6.496 OAL 2 Flute

TUNGALOY TCB500-540F32 Counter Bore Milling Cutter 2.126 Cutter Diameter Weldon 1.2598 6.496 OAL 2 Flute

ANSI: TCB500-540F32

ISO: TCB500-540F32

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751536
Delivery date: 3-5 days
$1,204.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Counterboring
Dimensional Specifications
Overall Len 6.4961 165.00MM
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.0394
Machine Side Connection Type Weldon
Cutter Dia 2.1260 54.00MM
Flutes/Inserts 2
Tool Material Steel
Cut Dia Max 2.1260 54.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Right
Seat/Nest 6757792
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802547
Seat Screw 6825513
