  • TUNGALOY TCB300-340F32 Counter Bore Milling Cutter 1.339 Cutter Diameter Weldon 1.2598 5.118 OAL 2 Flute

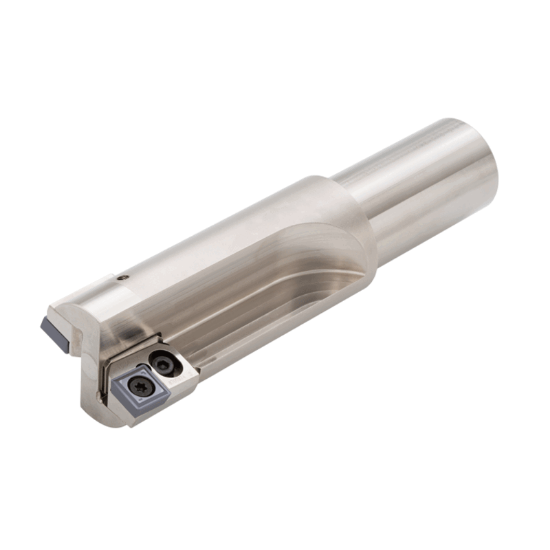

Picture of TUNGALOY TCB300-340F32 Counter Bore Milling Cutter 1.339 Cutter Diameter Weldon 1.2598 5.118 OAL 2 Flute

TUNGALOY TCB300-340F32 Counter Bore Milling Cutter 1.339 Cutter Diameter Weldon 1.2598 5.118 OAL 2 Flute

ANSI: TCB300-340F32

ISO: TCB300-340F32

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751532
Delivery date: 3-5 days
$850.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Counterboring
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 1.3386 34.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.3150
Cutter Dia 1.3390 34.01MM
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 5.1181 130.00MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Hand R/L Right
Seat/Nest 6757791
Fasteners & Connectors
Insert Screw 6802556
Seat Screw 6843204
