  • TUNGALOY TCB250F25 Milling Cutter 90.0°, Counter Bore 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 2 Flute

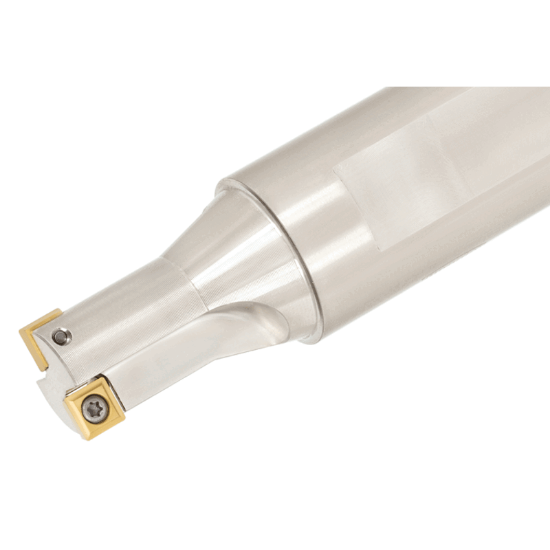

Picture of TUNGALOY TCB250F25 Milling Cutter 90.0°, Counter Bore 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 2 Flute

TUNGALOY TCB250F25 Milling Cutter 90.0°, Counter Bore 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 2 Flute

ANSI: TCB250F25

ISO: TCB250F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755947
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Counterboring, Face Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.9840 24.99MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Insert Size Ic 4
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2362
Cutter Dia 0.9840 24.99MM
Machine Side Connection Size 0.9843 25.00MM
Overall Len 2.0420 51.87MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SP
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802555
