  • TUNGALOY TCB240F25 Milling Cutter 90.0°, Counter Bore 0.945 Cutter Diameter Weldon 0.9843 1.968 OAL 2 Flute

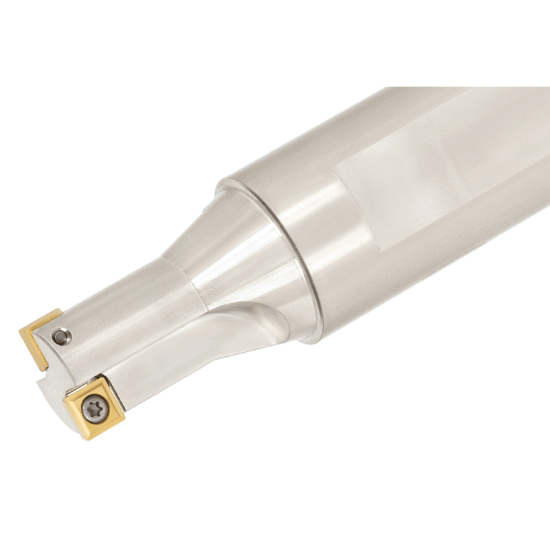

Picture of TUNGALOY TCB240F25 Milling Cutter 90.0°, Counter Bore 0.945 Cutter Diameter Weldon 0.9843 1.968 OAL 2 Flute

TUNGALOY TCB240F25 Milling Cutter 90.0°, Counter Bore 0.945 Cutter Diameter Weldon 0.9843 1.968 OAL 2 Flute

ANSI: TCB240F25

ISO: TCB240F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751556
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Counterboring, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 1.9685 50.00MM
Cutter Dia 0.9450 24.00MM
Insert Size Ic 4
Cut Dia Max 0.9450 24.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.2362
Cut Dia Min 0.9450 24.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SP
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802555
