  • TUNGALOY TCB220F25 Milling Cutter 90.0°, Counter Bore 0.866 Cutter Diameter Weldon 0.9843 1.921 OAL 2 Flute

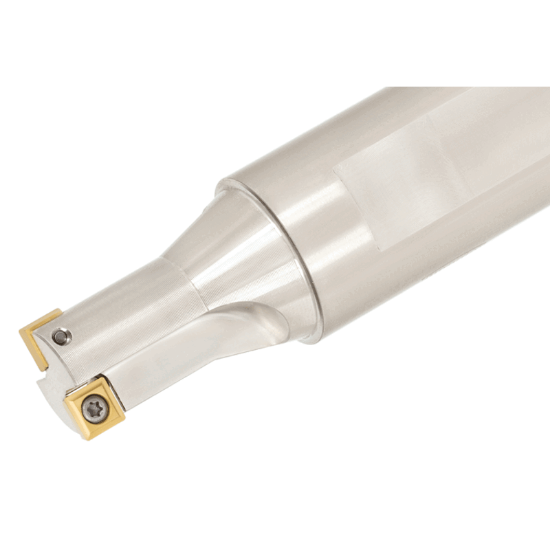

Picture of TUNGALOY TCB220F25 Milling Cutter 90.0°, Counter Bore 0.866 Cutter Diameter Weldon 0.9843 1.921 OAL 2 Flute

TUNGALOY TCB220F25 Milling Cutter 90.0°, Counter Bore 0.866 Cutter Diameter Weldon 0.9843 1.921 OAL 2 Flute

ANSI: TCB220F25

ISO: TCB220F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751552
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Counterboring, Face Milling
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2362
Cutter Dia 0.8660 22.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cut Dia Max 0.8660 22.00MM
Machine Side Connection Type Weldon
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 4
Tool Material Steel
Overall Len 1.9212 48.80MM
Cut Dia Min 0.8660 22.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SP
Fasteners & Connectors
Insert Screw 6802555
