  • TUNGALOY TCB210F25 Milling Cutter 90.0°, Counter Bore 0.827 Cutter Diameter Weldon 0.9843 1.889 OAL 2 Flute

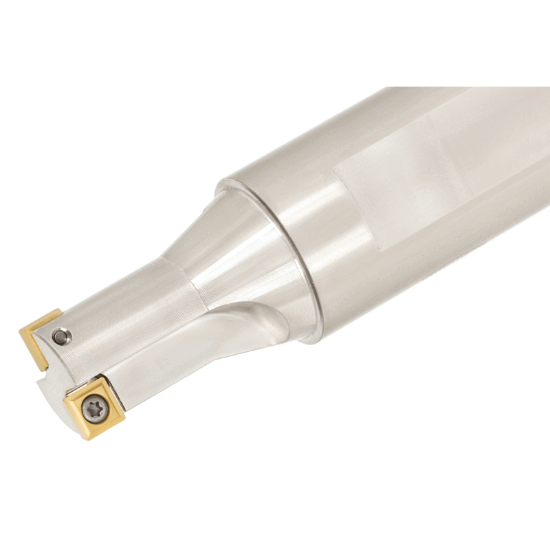

Picture of TUNGALOY TCB210F25 Milling Cutter 90.0°, Counter Bore 0.827 Cutter Diameter Weldon 0.9843 1.889 OAL 2 Flute

TUNGALOY TCB210F25 Milling Cutter 90.0°, Counter Bore 0.827 Cutter Diameter Weldon 0.9843 1.889 OAL 2 Flute

ANSI: TCB210F25

ISO: TCB210F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751550
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Counterboring, Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 4
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.2362
Cutter Dia 0.8270 21.01MM
Cut Dia Max 0.8270 21.01MM
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 1.8897 48.00MM
Flutes/Inserts 2
Cut Dia Min 0.8270 21.01MM
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Hand R/L Right
Insert Style SP
Fasteners & Connectors
Insert Screw 6802555
