  • TUNGALOY TCB190F25 Milling Cutter 90.0°, Counter Bore 0.748 Cutter Diameter Weldon 0.9843 1.830 OAL 2 Flute

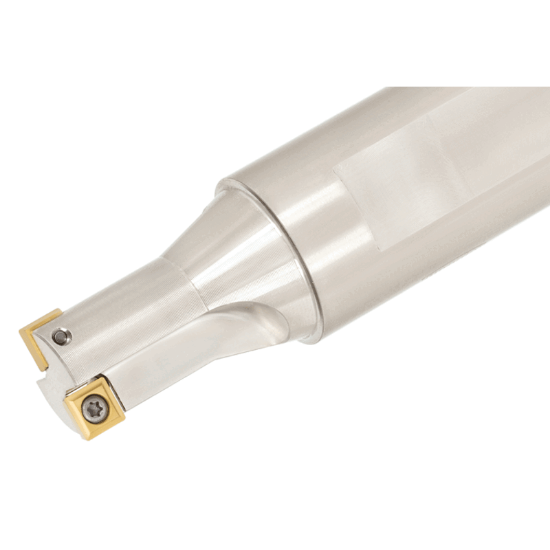

Picture of TUNGALOY TCB190F25 Milling Cutter 90.0°, Counter Bore 0.748 Cutter Diameter Weldon 0.9843 1.830 OAL 2 Flute

TUNGALOY TCB190F25 Milling Cutter 90.0°, Counter Bore 0.748 Cutter Diameter Weldon 0.9843 1.830 OAL 2 Flute

ANSI: TCB190F25

ISO: TCB190F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751546
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Counterboring
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2362
Shank/Pilot Dia 0.9843 25.00MM
Cut Dia Min 0.7480 19.00MM
Insert Size Ic 83
Cutter Dia 0.7480 19.00MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 1.8307 46.50MM
Cut Dia Max 0.7480 19.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Insert Style SP
Fasteners & Connectors
Insert Screw 6802558
