  • TUNGALOY TCB180F25 Milling Cutter 90.0°, Counter Bore 0.709 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

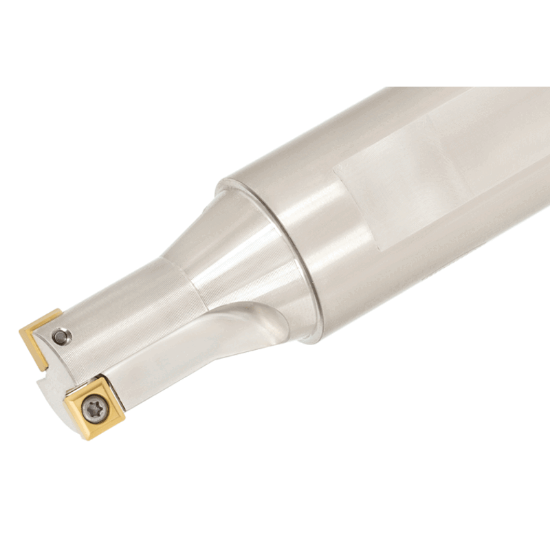

Picture of TUNGALOY TCB180F25 Milling Cutter 90.0°, Counter Bore 0.709 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

TUNGALOY TCB180F25 Milling Cutter 90.0°, Counter Bore 0.709 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

ANSI: TCB180F25

ISO: TCB180F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751544
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Counterboring, Face Milling
Dimensional Specifications
Insert Size Ic 83
Cutter Dia 0.7090 18.01MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Machine Side Connection Size 0.9843 25.00MM
Tool Material Steel
Depth Of Cut Max 0.1969
Machine Side Connection Type Weldon
Overall Len 1.7716 45.00MM
Cut Dia Max 0.7090 18.01MM
Cut Dia Min 0.7090 18.01MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802558
