  • TUNGALOY TCB175F25 Milling Cutter 90.0°, Counter Bore 0.689 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

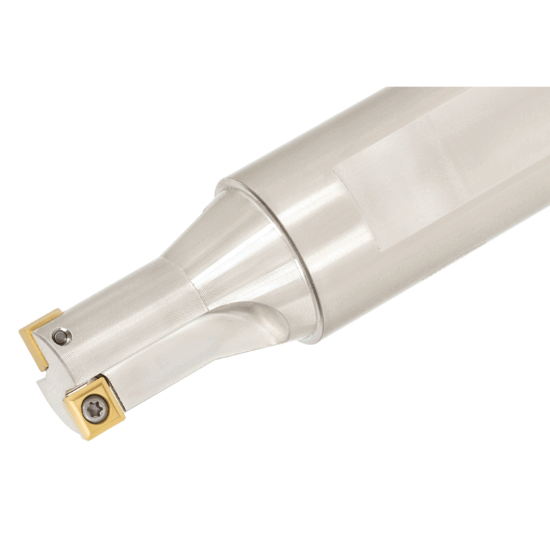

Picture of TUNGALOY TCB175F25 Milling Cutter 90.0°, Counter Bore 0.689 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

TUNGALOY TCB175F25 Milling Cutter 90.0°, Counter Bore 0.689 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

ANSI: TCB175F25

ISO: TCB175F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751543
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Type Positive
Application Counterboring, Face Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cut Dia Min 0.6890 17.50MM
Cut Dia Max 0.6890 17.50MM
Machine Side Connection Type Weldon
Overall Len 1.7716 45.00MM
Insert Size Ic 83
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cutter Dia 0.6890 17.50MM
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.1969
Cutting & Machining Properties
Insert Style SP
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802558
