  • TUNGALOY TCB170F25 Milling Cutter 90.0°, Counter Bore 0.669 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

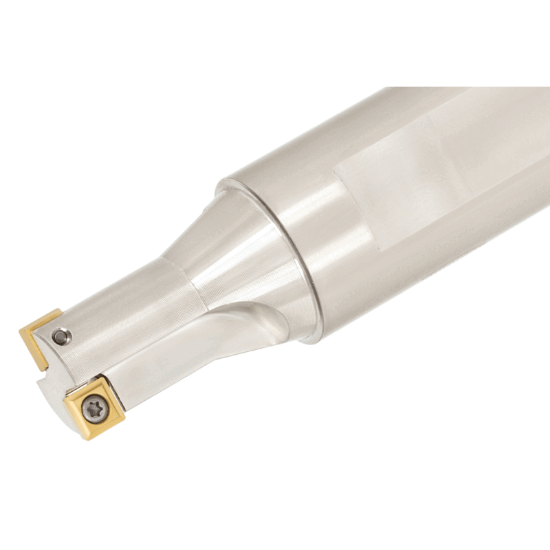

Picture of TUNGALOY TCB170F25 Milling Cutter 90.0°, Counter Bore 0.669 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

TUNGALOY TCB170F25 Milling Cutter 90.0°, Counter Bore 0.669 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

ANSI: TCB170F25

ISO: TCB170F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751542
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Counterboring, Face Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.1969
Overall Len 1.7511 44.48MM
Cutter Dia 0.6690 16.99MM
Cut Dia Max 0.6690 16.99MM
Machine Side Connection Type Weldon
Insert Size Ic 83
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cut Dia Min 0.6690 16.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802558
