  • TUNGALOY TCB160F25 Counter Bore Milling Cutter 0.630 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

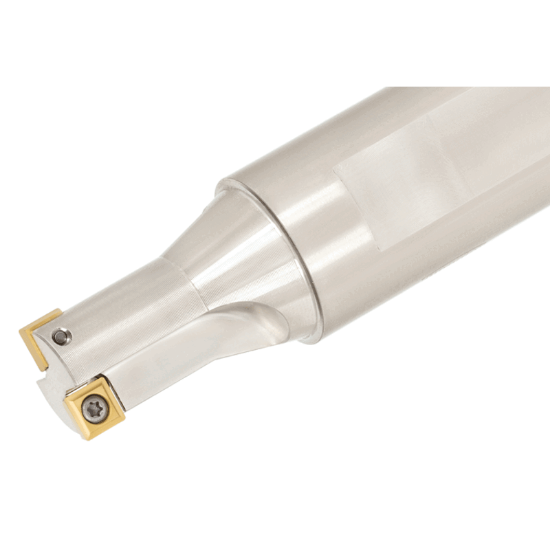

Picture of TUNGALOY TCB160F25 Counter Bore Milling Cutter 0.630 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

TUNGALOY TCB160F25 Counter Bore Milling Cutter 0.630 Cutter Diameter Weldon 0.9843 1.771 OAL 2 Flute

ANSI: TCB160F25

ISO: TCB160F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751529
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Counterboring
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.2362
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 1.7716 45.00MM
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Weldon
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802567
