  • TUNGALOY TCB150F25 Counter Bore Milling Cutter 0.984 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

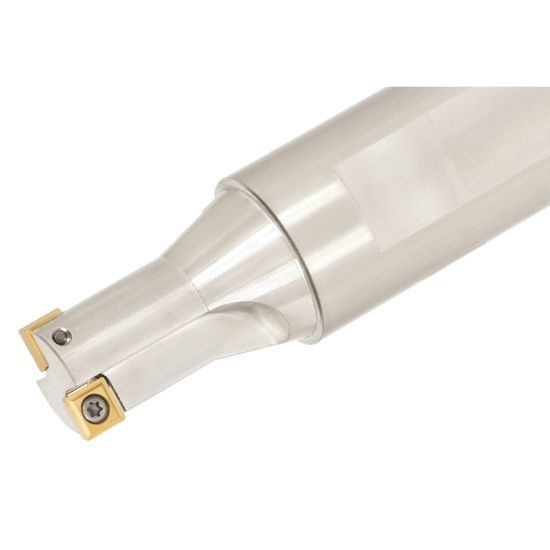

Picture of TUNGALOY TCB150F25 Counter Bore Milling Cutter 0.984 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

TUNGALOY TCB150F25 Counter Bore Milling Cutter 0.984 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

ANSI: TCB150F25

ISO: TCB150F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751527
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Counterboring
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Cut Dia Min 0.5910 15.01MM
Flutes/Inserts 2
Cut Dia Max 0.5910 15.01MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.1575
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 1.7511 44.48MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802567
