  • TUNGALOY TCB140F25 Counter Bore Milling Cutter 0.511 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

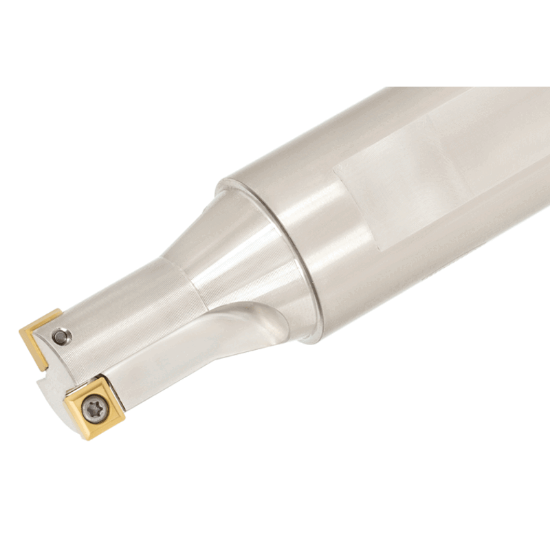

Picture of TUNGALOY TCB140F25 Counter Bore Milling Cutter 0.511 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

TUNGALOY TCB140F25 Counter Bore Milling Cutter 0.511 Cutter Diameter Weldon 0.9843 1.751 OAL 2 Flute

ANSI: TCB140F25

ISO: TCB140F25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751525
Delivery date: 3-5 days
$240.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Type Positive
Application Counterboring
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Tool Material Steel
Overall Len 1.7511 44.48MM
Cut Dia Max 0.5510 14.00MM
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.1575
Cutter Dia 0.5110 12.98MM
Cut Dia Min 0.5510 14.00MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802567
