  • TUNGALOY TCB120F20 Counter Bore Milling Cutter 0.472 Cutter Diameter Weldon 0.7874 3.503 OAL 1 Flute

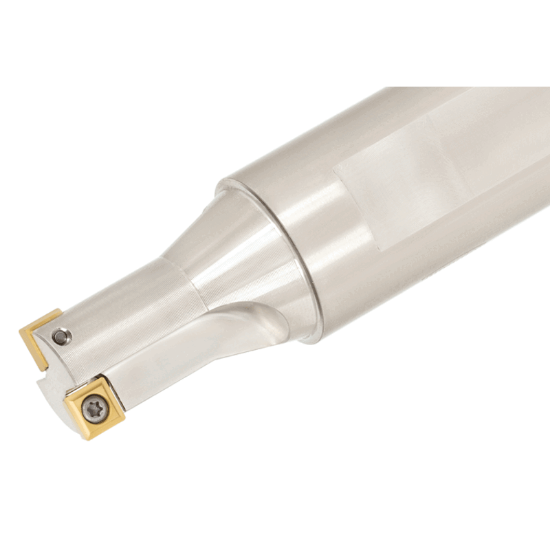

Picture of TUNGALOY TCB120F20 Counter Bore Milling Cutter 0.472 Cutter Diameter Weldon 0.7874 3.503 OAL 1 Flute

TUNGALOY TCB120F20 Counter Bore Milling Cutter 0.472 Cutter Diameter Weldon 0.7874 3.503 OAL 1 Flute

ANSI: TCB120F20

ISO: TCB120F20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751521
Delivery date: 3-5 days
$214.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Application Counterboring
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 1
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Cutter Dia 0.4720 11.99MM
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Weldon
Overall Len 3.5039 89.00MM
Depth Of Cut Max 0.1575
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802567
