  • TUNGALOY TCB110F16 Counter Bore Milling Cutter 0.433 Cutter Diameter Weldon 0.6299 3.425 OAL 1 Flute

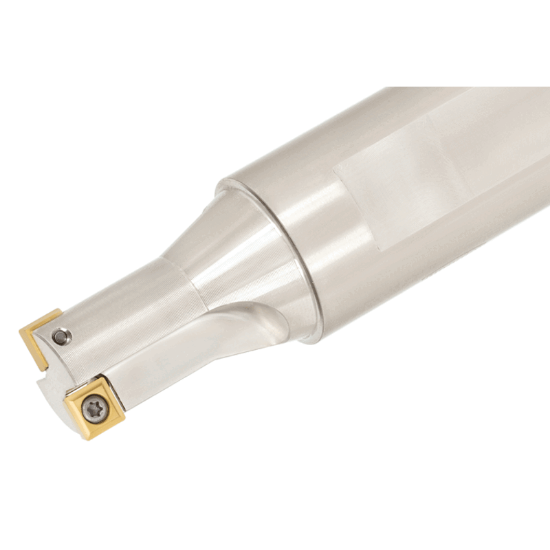

Picture of TUNGALOY TCB110F16 Counter Bore Milling Cutter 0.433 Cutter Diameter Weldon 0.6299 3.425 OAL 1 Flute

TUNGALOY TCB110F16 Counter Bore Milling Cutter 0.433 Cutter Diameter Weldon 0.6299 3.425 OAL 1 Flute

ANSI: TCB110F16

ISO: TCB110F16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751519
Delivery date: 3-5 days
$214.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Counterboring
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Dia 0.4330 11.00MM
Tool Material Steel
Depth Of Cut Max 0.1575
Overall Len 3.4252 87.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Dia Max 0.4330 11.00MM
Flutes/Inserts 1
Cut Dia Min 0.4330 11.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802567
