  • TUNGALOY TCB100F16 Counter Bore Milling Cutter 0.394 Cutter Diameter Weldon 0.6299 3.385 OAL 1 Flute

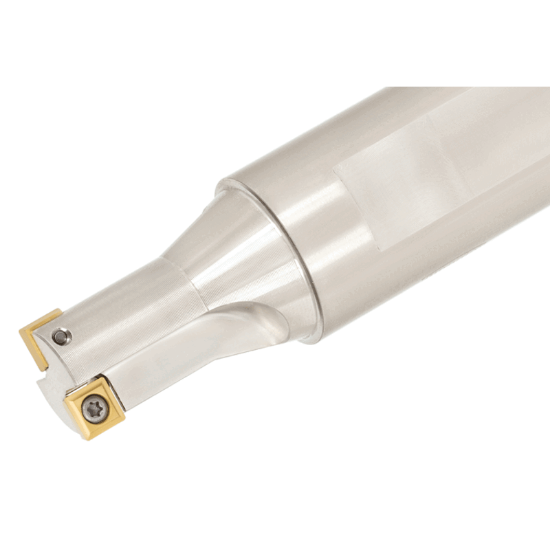

Picture of TUNGALOY TCB100F16 Counter Bore Milling Cutter 0.394 Cutter Diameter Weldon 0.6299 3.385 OAL 1 Flute

TUNGALOY TCB100F16 Counter Bore Milling Cutter 0.394 Cutter Diameter Weldon 0.6299 3.385 OAL 1 Flute

ANSI: TCB100F16

ISO: TCB100F16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751517
Delivery date: 3-5 days
$214.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Counterboring
Dimensional Specifications
Depth Of Cut Max 0.1575
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.3940 10.01MM
Overall Len 3.3858 86.00MM
Flutes/Inserts 1
Cut Dia Max 0.3940 10.01MM
Machine Side Connection Type Weldon
Tool Material Steel
Cut Dia Min 0.3940 10.01MM
Machine Side Connection Size 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802567
