  • TUNGALOY TCB-430 Milling Cutter 90.0°, Counter Bore 1.623 Cutter Diameter Cylindrical Shank1.6535 6.732 OAL 2 Flute

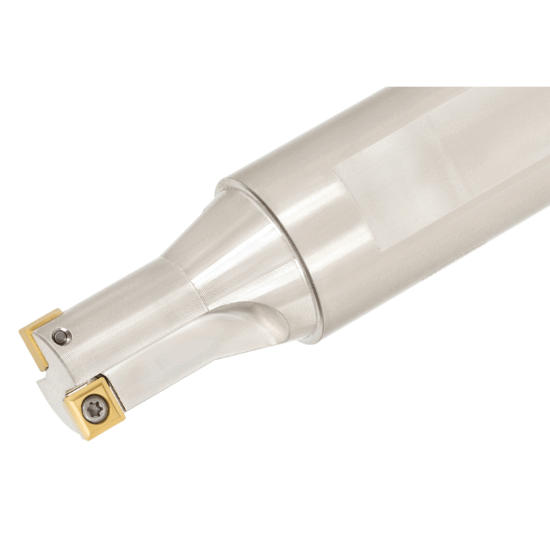

Picture of TUNGALOY TCB-430 Milling Cutter 90.0°, Counter Bore 1.623 Cutter Diameter Cylindrical Shank1.6535 6.732 OAL 2 Flute

TUNGALOY TCB-430 Milling Cutter 90.0°, Counter Bore 1.623 Cutter Diameter Cylindrical Shank1.6535 6.732 OAL 2 Flute

ANSI: TCB-430

ISO: TCB-430

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807611
Delivery date: 3-5 days
$307.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Counterboring, Face Milling
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 43
Cut Dia Max 1.6930 43.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.0394
Cutter Dia 1.6230 41.22MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.6535 42.00MM
Cut Dia Min 1.6230 41.22MM
Overall Len 6.7323 171.00MM
Machine Side Connection Size 1.6535 42.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 6802547
