  • TUNGALOY TCB-390 Milling Cutter 90.0°, Counter Bore 1.535 Cutter Diameter Weldon 1.2598 6.220 OAL 2 Flute

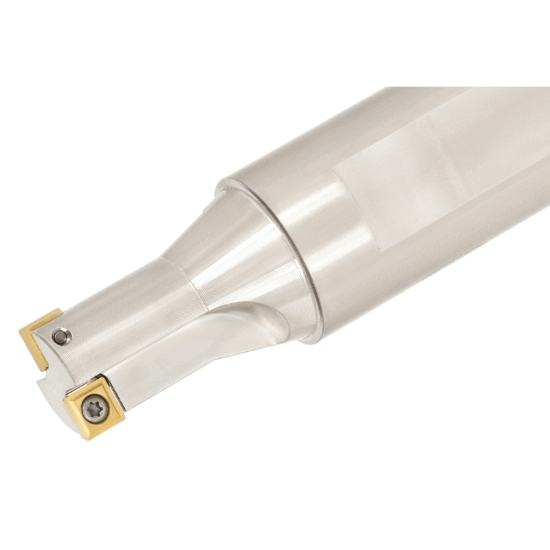

Picture of TUNGALOY TCB-390 Milling Cutter 90.0°, Counter Bore 1.535 Cutter Diameter Weldon 1.2598 6.220 OAL 2 Flute

TUNGALOY TCB-390 Milling Cutter 90.0°, Counter Bore 1.535 Cutter Diameter Weldon 1.2598 6.220 OAL 2 Flute

ANSI: TCB-390

ISO: TCB-390

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807610
Delivery date: 3-5 days
$307.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Counterboring
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.0394
Cutter Dia 1.5350 38.99MM
Cut Dia Max 1.5350 38.99MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 6.2205 158.00MM
Insert Size Ic 43
Cut Dia Min 1.5350 38.99MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Tool Material Steel
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SP
Fasteners & Connectors
Insert Screw 6802547
