  • TUNGALOY TCB-350 Milling Cutter 90.0°, Counter Bore 1.378 Cutter Diameter Weldon 1.2598 5.905 OAL 2 Flute

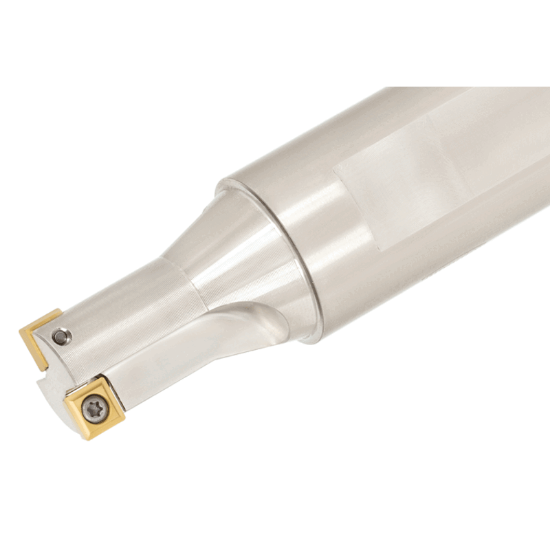

Picture of TUNGALOY TCB-350 Milling Cutter 90.0°, Counter Bore 1.378 Cutter Diameter Weldon 1.2598 5.905 OAL 2 Flute

TUNGALOY TCB-350 Milling Cutter 90.0°, Counter Bore 1.378 Cutter Diameter Weldon 1.2598 5.905 OAL 2 Flute

ANSI: TCB-350

ISO: TCB-350

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807609
Delivery date: 3-5 days
$307.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Counterboring
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 43
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Min 1.3780 35.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Tool Material Steel
Depth Of Cut Max 0.0394
Machine Side Connection Type Weldon
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802547
