  • TUNGALOY TCB-320 Milling Cutter 90.0°, Counter Bore 1.260 Cutter Diameter Weldon 1.2598 5.669 OAL 2 Flute

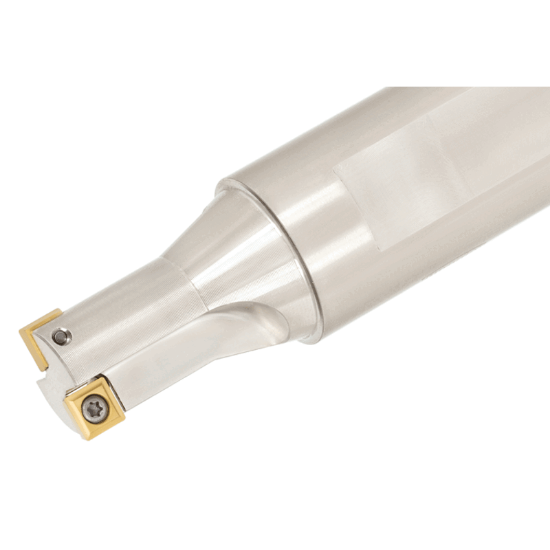

Picture of TUNGALOY TCB-320 Milling Cutter 90.0°, Counter Bore 1.260 Cutter Diameter Weldon 1.2598 5.669 OAL 2 Flute

TUNGALOY TCB-320 Milling Cutter 90.0°, Counter Bore 1.260 Cutter Diameter Weldon 1.2598 5.669 OAL 2 Flute

ANSI: TCB-320

ISO: TCB-320

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807608
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Type Positive
Application Counterboring, Face Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Depth Of Cut Max 0.0394
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Insert Size Ic 32
Machine Side Connection Size 1.2598 32.00MM
Overall Len 5.6693 144.00MM
Cutter Dia 1.2600 32.00MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802556
