  • TUNGALOY TCB-290 Milling Cutter 90.0°, Counter Bore 1.142 Cutter Diameter Weldon 1.2598 5.433 OAL 2 Flute

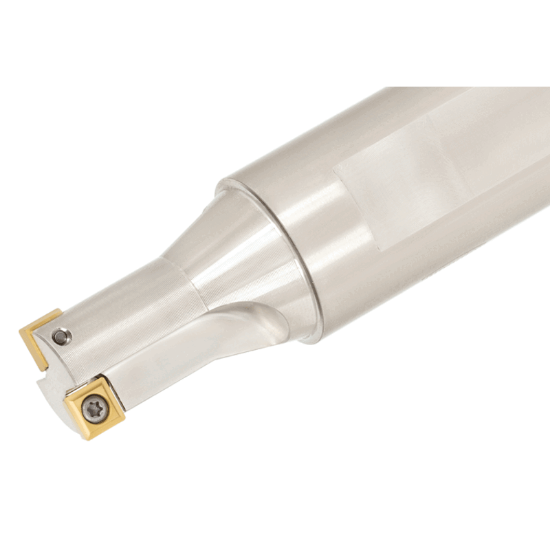

Picture of TUNGALOY TCB-290 Milling Cutter 90.0°, Counter Bore 1.142 Cutter Diameter Weldon 1.2598 5.433 OAL 2 Flute

TUNGALOY TCB-290 Milling Cutter 90.0°, Counter Bore 1.142 Cutter Diameter Weldon 1.2598 5.433 OAL 2 Flute

ANSI: TCB-290

ISO: TCB-290

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807607
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Counterboring, Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 1.1420 29.01MM
Tool Material Steel
Insert Size Ic 32
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 5.4331 138.00MM
Cutter Dia 1.1420 29.01MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3150
Cut Dia Max 1.1570 29.39MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802556
