  • TUNGALOY TCB-260 Milling Cutter 90.0°, Counter Bore 1.024 Cutter Diameter Weldon 1.2598 5.196 OAL 2 Flute

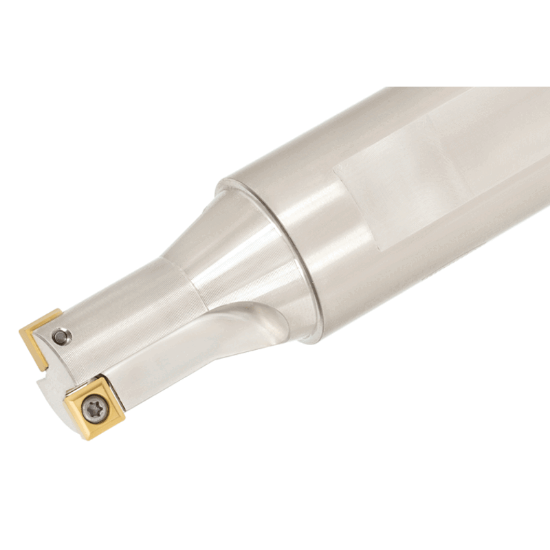

Picture of TUNGALOY TCB-260 Milling Cutter 90.0°, Counter Bore 1.024 Cutter Diameter Weldon 1.2598 5.196 OAL 2 Flute

TUNGALOY TCB-260 Milling Cutter 90.0°, Counter Bore 1.024 Cutter Diameter Weldon 1.2598 5.196 OAL 2 Flute

ANSI: TCB-260

ISO: TCB-260

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807606
Delivery date: 3-5 days
$258.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Counterboring, Face Milling
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Max 1.0240 26.01MM
Machine Side Connection Type Weldon
Insert Size Ic 83
Depth Of Cut Max 0.3150
Cut Dia Min 1.0240 26.01MM
Overall Len 5.1969 132.00MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 1.0240 26.01MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 6802555
