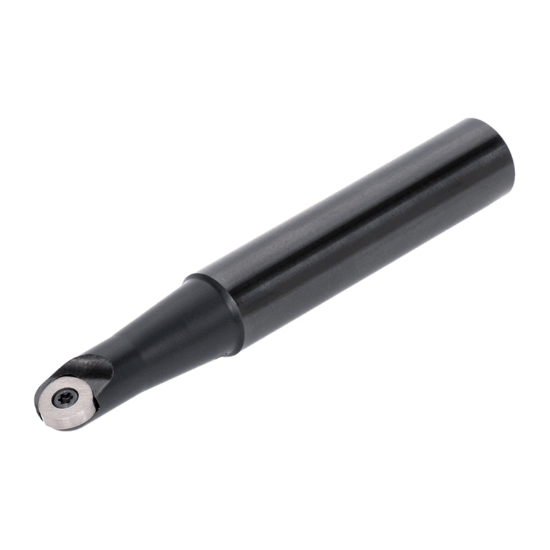

Picture of TUNGALOY TBN1160S Milling Cutter 0.630 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 1 Flute

TUNGALOY TBN1160S Milling Cutter 0.630 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 1 Flute

ANSI: TBN1160S

ISO: TBN1160S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807558
Delivery date: 3-5 days
$179.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Profile Milling, Copy Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.6300 16.00MM
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 1
Overall Len 5.1181 130.00MM
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.0394
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802580
