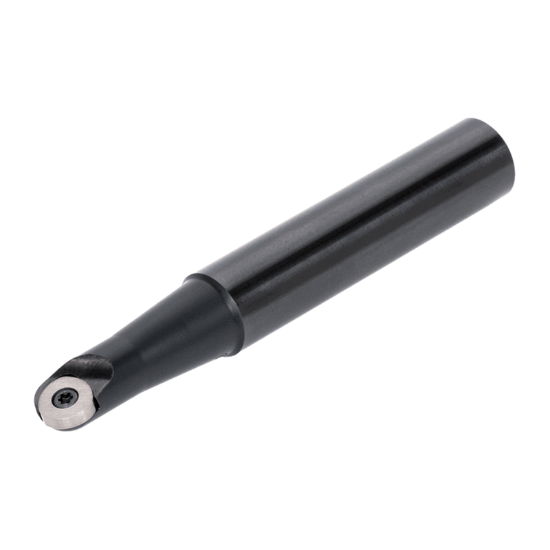

Picture of TUNGALOY TBN1120S Milling Cutter 0.472 Cutter Diameter Cylindrical Shank0.6299 4.330 OAL 1 Flute

TUNGALOY TBN1120S Milling Cutter 0.472 Cutter Diameter Cylindrical Shank0.6299 4.330 OAL 1 Flute

ANSI: TBN1120S

ISO: TBN1120S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807555
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Cylindrical
Tool Material Steel
Cutter Dia 0.4720 11.99MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Depth Of Cut Max 0.3150
Flutes/Inserts 1
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Overall Len 4.3307 110.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802574
