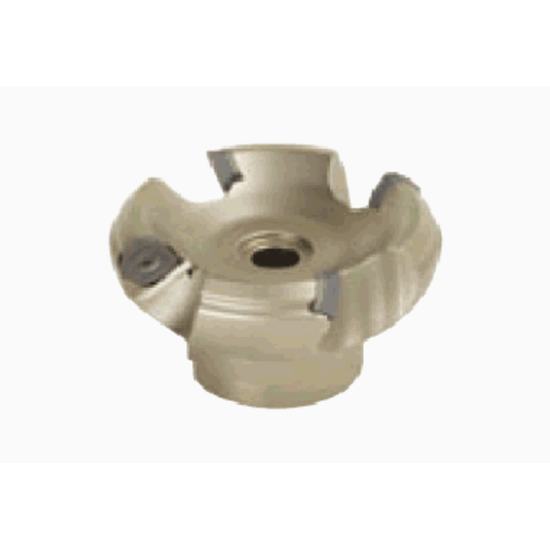

Picture of TUNGALOY TAW13R600U0200A07 Milling Cutter 45.0° 6.000 Cutter Diameter Shell Arbor 2.0000 7 Flute

TUNGALOY TAW13R600U0200A07 Milling Cutter 45.0° 6.000 Cutter Diameter Shell Arbor 2.0000 7 Flute

ANSI: TAW13R600U0200A07

ISO: TAW13R600U0200A07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850795
Delivery date: 3-5 days
$1,178.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Dimensional Specifications
Cut Dia Max 6.5130 165.43MM
Machine Side Connection Size 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3940
Cutter Dia 6.0000 152.40MM
Cut Dia Min 6.0000 152.40MM
Tool Material Steel
Insert Size Ic 13
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style SW
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
