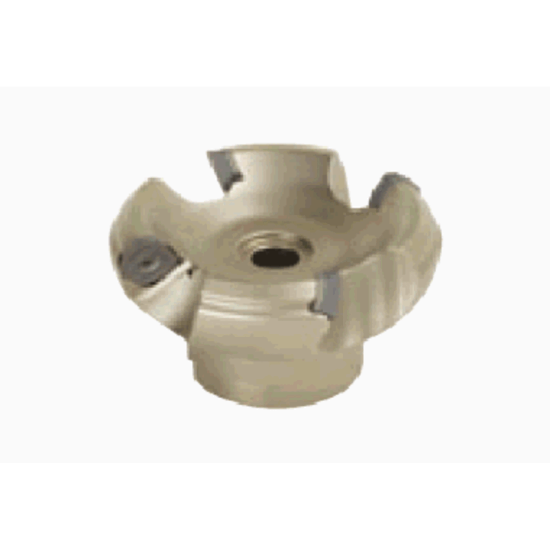

Picture of TUNGALOY TAW13R160M50.8-07 Milling Cutter 45.0° 6.299 Cutter Diameter Shell Arbor 2.0000 7 Flute

TUNGALOY TAW13R160M50.8-07 Milling Cutter 45.0° 6.299 Cutter Diameter Shell Arbor 2.0000 7 Flute

ANSI: TAW13R160M50.8-07

ISO: TAW13R160M50.8-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849794
Delivery date: 3-5 days
$1,178.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Max 6.8500 173.99MM
Insert Size Ic 13
Flutes/Inserts 7
Depth Of Cut Max 0.1969
Cut Dia Min 6.2990 159.99MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 6.2990 159.99MM
Cutting & Machining Properties
Hand R/L Right
Seat/Nest 6846767
Coolant Thru Yes
Insert Style SW
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
