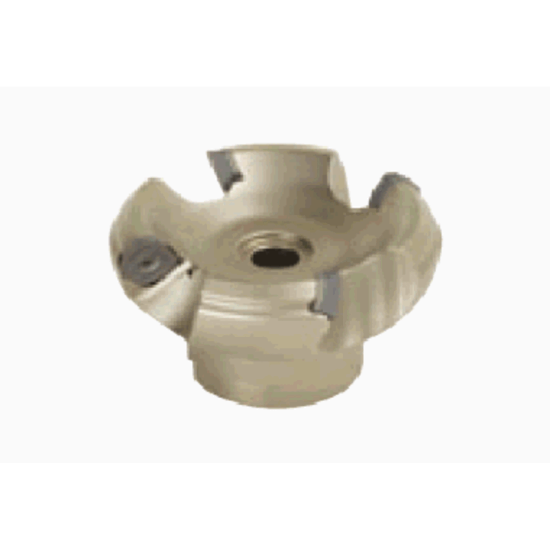

Picture of TUNGALOY TAW13R125M38.1-08 Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 8 Flute

TUNGALOY TAW13R125M38.1-08 Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 8 Flute

ANSI: TAW13R125M38.1-08

ISO: TAW13R125M38.1-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849800
Delivery date: 3-5 days
$1,069.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing, Finishing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Dimensional Specifications
Insert Size Ic 13
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 8
Cut Dia Max 5.4720 138.99MM
Tool Material Steel
Depth Of Cut Max 0.1969
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.9210 124.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Coolant Thru Yes
Insert Style SW
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
