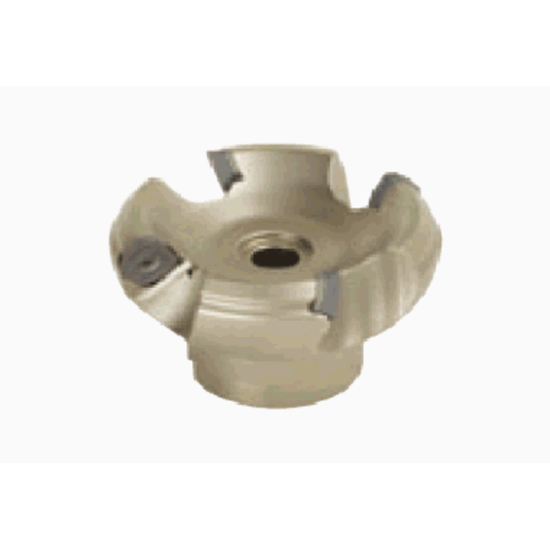

Picture of TUNGALOY TAW13R125M38.1-06 Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TAW13R125M38.1-06 Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TAW13R125M38.1-06

ISO: TAW13R125M38.1-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849793
Delivery date: 3-5 days
$865.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.1969
Cut Dia Max 5.4720 138.99MM
Tool Material Steel
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SW
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
