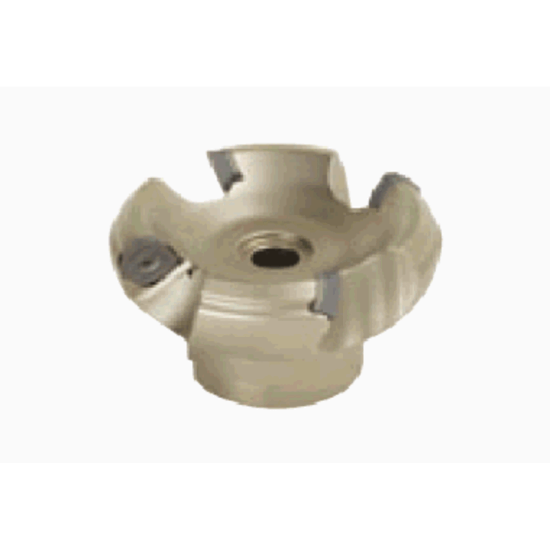

Picture of TUNGALOY TAW13R100M32.0E07 Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

TUNGALOY TAW13R100M32.0E07 Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2598 7 Flute

ANSI: TAW13R100M32.0E07

ISO: TAW13R100M32.0E07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6845761
Delivery date: 3-5 days
$865.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing, Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Dimensional Specifications
Depth Of Cut Max 0.1969
Cut Dia Max 4.4880 114.00MM
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Insert Size Ic 13
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style SW
Seat/Nest 6846766
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
