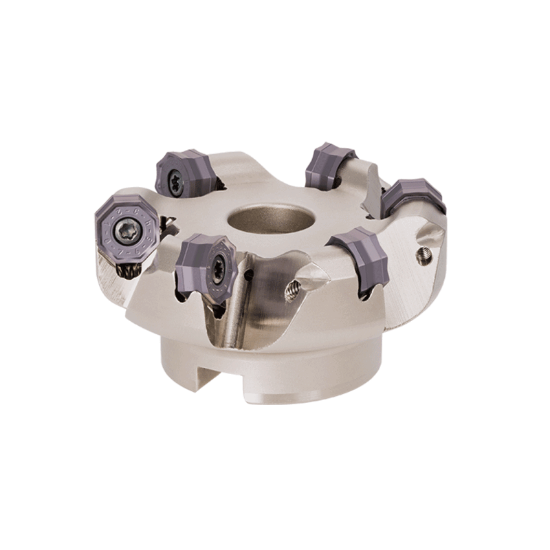

Picture of TUNGALOY TASN13U4.00B1.50R08 Milling Cutter 43.0° 4.000 Cutter Diameter Shell Arbor 1.5000 8 Flute

TUNGALOY TASN13U4.00B1.50R08 Milling Cutter 43.0° 4.000 Cutter Diameter Shell Arbor 1.5000 8 Flute

ANSI: TASN13U4.00B1.50R08

ISO: TASN13U4.00B1.50R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999413
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

FACE MILL WITH 3 DIFFERENT INSERTS IN ONE TOOL. 16 SIDED OCTAGON, 8 SIDED SQUARE AND BUTTON INSERT. WIPER AVAILABLE FOR MICRO FINISHES. GREAT JOB SHOP CUTTER.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Insert Type Negative
Application Round Milling, Face Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Cut Dia Max 4.5512 115.60MM
Tool Material Steel
Flutes/Inserts 8
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2360
Cutting & Machining Properties
Insert Style ON,SN,RN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816783
