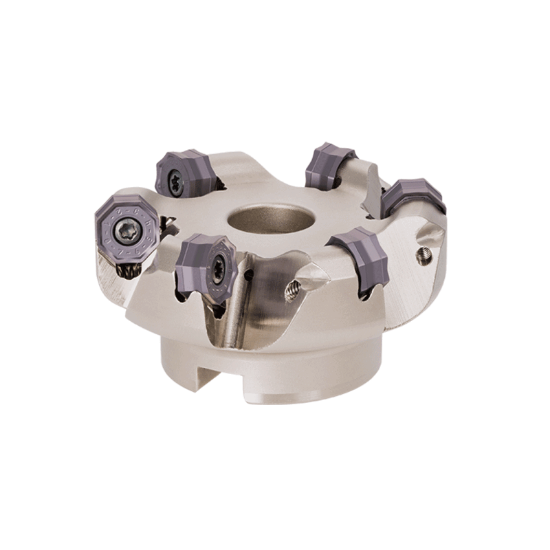

Picture of TUNGALOY TASN13U2.00B0.75R05 Milling Cutter 43.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

TUNGALOY TASN13U2.00B0.75R05 Milling Cutter 43.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

ANSI: TASN13U2.00B0.75R05

ISO: TASN13U2.00B0.75R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999410
Delivery date: 3-5 days
$656.30

Details

FACE MILL WITH 3 DIFFERENT INSERTS IN ONE TOOL. 16 SIDED OCTAGON, 8 SIDED SQUARE AND BUTTON INSERT. WIPER AVAILABLE FOR MICRO FINISHES. GREAT JOB SHOP CUTTER.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2360
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.5512 64.80MM
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style ON,SN,RN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
