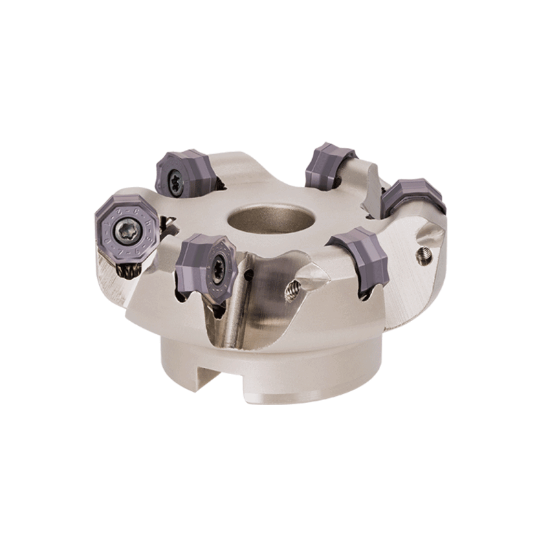

Picture of TUNGALOY TASN13M160B40.0R12 Milling Cutter 45.0° 6.850 Cutter Diameter Shell Arbor 1.5748 12 Flute

TUNGALOY TASN13M160B40.0R12 Milling Cutter 45.0° 6.850 Cutter Diameter Shell Arbor 1.5748 12 Flute

ANSI: TASN13M160B40.0R12

ISO: TASN13M160B40.0R12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6727019
Delivery date: 3-5 days
$1,747.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling
Made In USA No
Insert/Tool Tool
Package Size 1
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Cutter Dia 6.8500 173.99MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1181
Cut Dia Max 6.8500 173.99MM
Cut Dia Min 6.2990 159.99MM
Flutes/Inserts 12
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style ON,SN,RN
Fasteners & Connectors
Insert Screw 6816783
