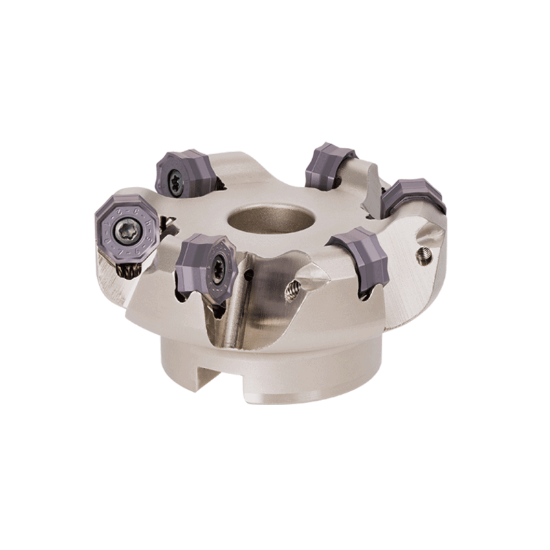

Picture of TUNGALOY TASN13M125B40.0R10 Milling Cutter 45.0° 5.472 Cutter Diameter Shell Arbor 1.5748 10 Flute

TUNGALOY TASN13M125B40.0R10 Milling Cutter 45.0° 5.472 Cutter Diameter Shell Arbor 1.5748 10 Flute

ANSI: TASN13M125B40.0R10

ISO: TASN13M125B40.0R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6727018
Delivery date: 3-5 days
$1,323.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2362
Cut Dia Min 4.9210 124.99MM
Cut Dia Max 5.4700 138.94MM
Machine Side Connection Size 1.5748 40.00MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 10
Cutter Dia 5.4720 138.99MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Insert Style ON,SN,RN
Fasteners & Connectors
Insert Screw 6816783
