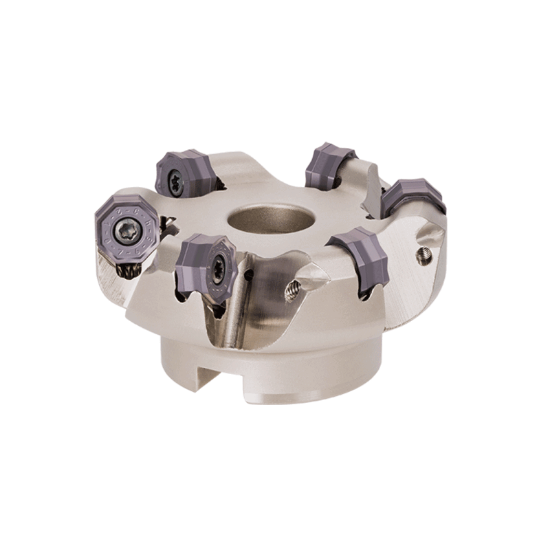

Picture of TUNGALOY TASN13M080B27.0R08 Milling Cutter 43.0° 3.150 Cutter Diameter Shell Arbor 0.6300 8 Flute

TUNGALOY TASN13M080B27.0R08 Milling Cutter 43.0° 3.150 Cutter Diameter Shell Arbor 0.6300 8 Flute

ANSI: TASN13M080B27.0R08

ISO: TASN13M080B27.0R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999399
Delivery date: 3-5 days
$883.25

Details

FACE MILL WITH 3 DIFFERENT INSERTS IN ONE TOOL. 16 SIDED OCTAGON, 8 SIDED SQUARE AND BUTTON INSERT. WIPER AVAILABLE FOR MICRO FINISHES. GREAT JOB SHOP CUTTER.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling, Round Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.7010 94.01MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2362
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style ON,SN,RN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
