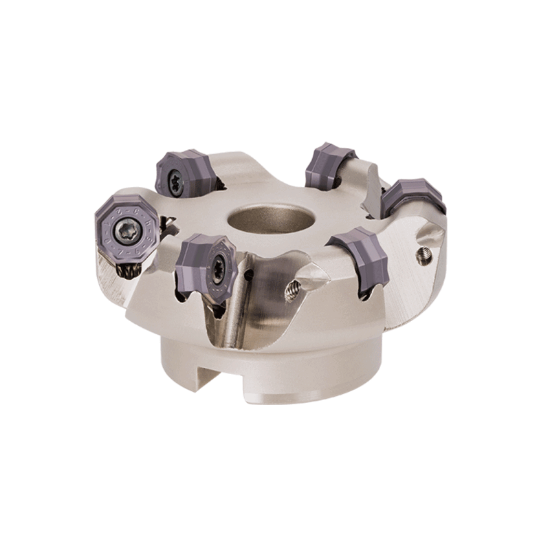

Picture of TUNGALOY TASN13M063B22.0R08 Milling Cutter 45.0° 3.031 Cutter Diameter Shell Arbor 0.8661 8 Flute

TUNGALOY TASN13M063B22.0R08 Milling Cutter 45.0° 3.031 Cutter Diameter Shell Arbor 0.8661 8 Flute

ANSI: TASN13M063B22.0R08

ISO: TASN13M063B22.0R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6736086
Delivery date: 3-5 days
$855.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 3.0310 76.99MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 3.0310 76.99MM
Cut Dia Min 2.4800 62.99MM
Flutes/Inserts 8
Depth Of Cut Max 0.2360
Cutting & Machining Properties
Insert Style SN,ON,RN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816783
