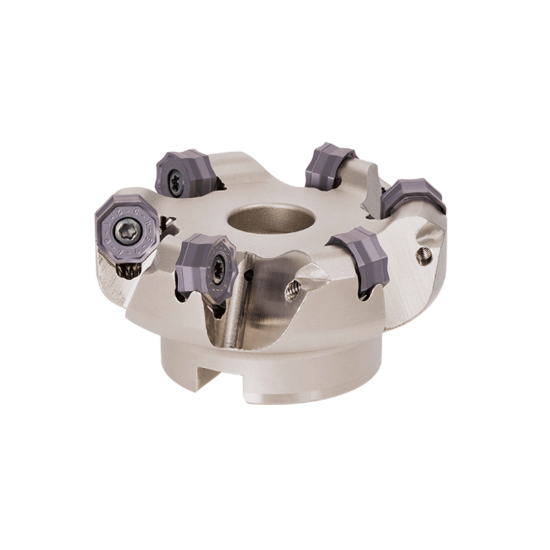

Picture of TUNGALOY TASN13M063B22.0R06 Milling Cutter 43.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

TUNGALOY TASN13M063B22.0R06 Milling Cutter 43.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

ANSI: TASN13M063B22.0R06

ISO: TASN13M063B22.0R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999344
Delivery date: 3-5 days
$753.55

Details

FACE MILL WITH 3 DIFFERENT INSERTS IN ONE TOOL. 16 SIDED OCTAGON, 8 SIDED SQUARE AND BUTTON INSERT. WIPER AVAILABLE FOR MICRO FINISHES. GREAT JOB SHOP CUTTER.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Round Milling, Face Milling
Package Size 1
Dimensional Specifications
Tool Material Steel
Cut Dia Max 3.0310 76.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 2.4800 62.99MM
Cutter Dia 2.4800 62.99MM
Depth Of Cut Max 0.2362
Flutes/Inserts 6
Cutting & Machining Properties
Insert Style ON,SN,RN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816783
