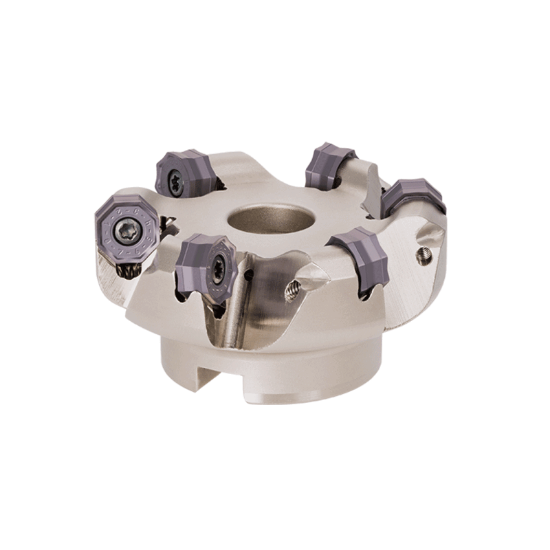

Picture of TUNGALOY TASN13J125B38.1R10 Milling Cutter 43.0° 4.921 Cutter Diameter Shell Arbor 1.5000 10 Flute

TUNGALOY TASN13J125B38.1R10 Milling Cutter 43.0° 4.921 Cutter Diameter Shell Arbor 1.5000 10 Flute

ANSI: TASN13J125B38.1R10

ISO: TASN13J125B38.1R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999405
Delivery date: 3-5 days
$1,323.75

Details

FACE MILL WITH 3 DIFFERENT INSERTS IN ONE TOOL. 16 SIDED OCTAGON, 8 SIDED SQUARE AND BUTTON INSERT. WIPER AVAILABLE FOR MICRO FINISHES. GREAT JOB SHOP CUTTER.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 10
Depth Of Cut Max 0.2362
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 5.4720 138.99MM
Tool Material Steel
Cutter Dia 4.9210 124.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Insert Style ON,SN,RN
Fasteners & Connectors
Insert Screw 6816783
