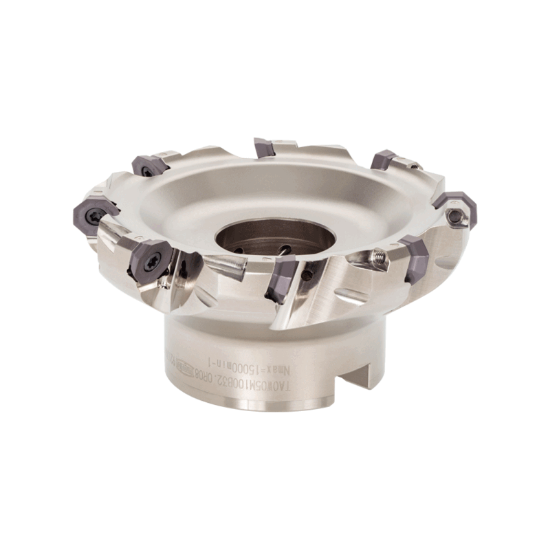

Picture of TUNGALOY TAOW05U4.00B1.50R08 Milling Cutter 41.0° 4.000 Cutter Diameter Shell Arbor 1.5000 8 Flute

TUNGALOY TAOW05U4.00B1.50R08 Milling Cutter 41.0° 4.000 Cutter Diameter Shell Arbor 1.5000 8 Flute

ANSI: TAOW05U4.00B1.50R08

ISO: TAOW05U4.00B1.50R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6791565
Delivery date: 3-5 days
$945.85

Details

41 deg screw clamp type face milling cutter with single-sided octagonal inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.1180
Cutter Dia 4.0000 101.60MM
Cut Dia Min 4.0000 101.60MM
Tool Material Steel
Flutes/Inserts 8
Cut Dia Max 4.3000 109.22MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 5
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Octagonal
Insert Style OW
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
