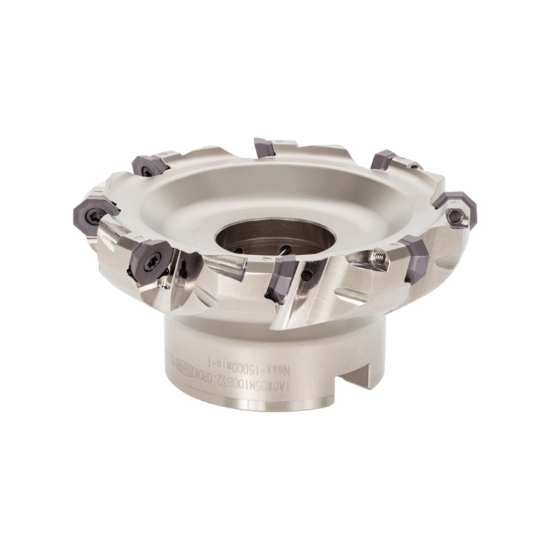

TUNGALOY TAOW05J100B31.7R06 Milling Cutter 41.0° 3.937 Cutter Diameter Shell Arbor 1.2500 6 Flute

ANSI: TAOW05J100B31.7R06

ISO: TAOW05J100B31.7R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781990
Delivery date: 3-5 days
$837.10

Details

41 deg screw clamp type face milling cutter with single-sided octagonal inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Depth Of Cut Max 0.1770
Cutter Dia 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 6
Cut Dia Min 3.9370 100.00MM
Cut Dia Max 4.2360 107.59MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style OW
Insert Shape/Cutter Pocket Shape Octagonal
Fasteners & Connectors
Insert Screw 6816784
