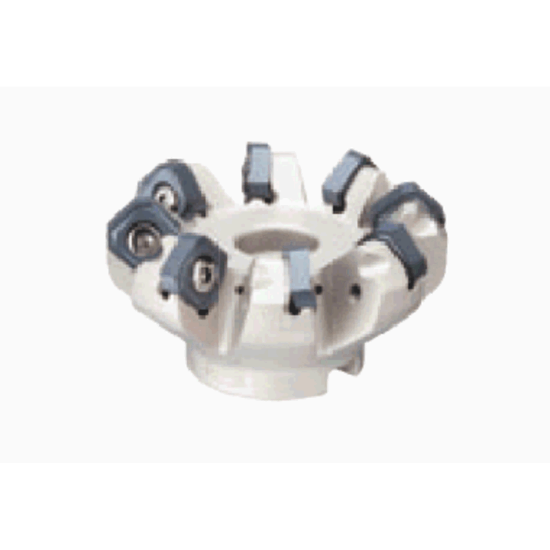

Picture of TUNGALOY TAN07R600U0200A15 Milling Cutter 43.0° 6.000 Cutter Diameter Shell Arbor 2.0000 15 Flute

TUNGALOY TAN07R600U0200A15 Milling Cutter 43.0° 6.000 Cutter Diameter Shell Arbor 2.0000 15 Flute

ANSI: TAN07R600U0200A15

ISO: TAN07R600U0200A15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861862
Delivery date: 3-5 days
$1,936.45

Details

MILLING CUTTER HOLDING 3 DIFFERENT INSERT. MULTI CORNER DOUBLE SIDED INSERT SQUARE 8 CORNER, OCTAGONAL 16 CORNER FOR FACING AND FEEDMILLING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Feed Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 6.0000 152.40MM
Cut Dia Max 6.5118 165.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.2950
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 15
Cutting & Machining Properties
Insert Style ON,SN
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7007497
