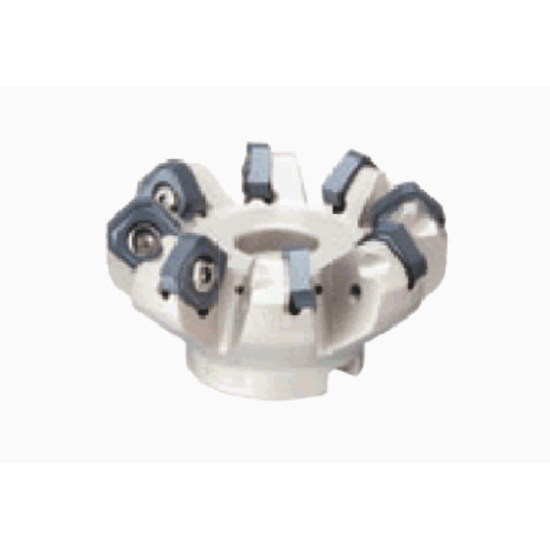

TUNGALOY TAN07R400U0150A07 Milling Cutter 43.0° 4.000 Cutter Diameter Shell Arbor 1.5000 7 Flute

ANSI: TAN07R400U0150A07

ISO: TAN07R400U0150A07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861825
Delivery date: 3-5 days
$1,088.60

Details

MILLING CUTTER HOLDING 3 DIFFERENT INSERT. MULTI CORNER DOUBLE SIDED INSERT SQUARE 8 CORNER, OCTAGONAL 16 CORNER FOR FACING AND FEEDMILLING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Feed Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2950
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.5118 114.60MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Cutting & Machining Properties
Insert Style ON,SN
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7007497
