  • TUNGALOY TAN07R315M60.0E18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 2.3620 18 Flute

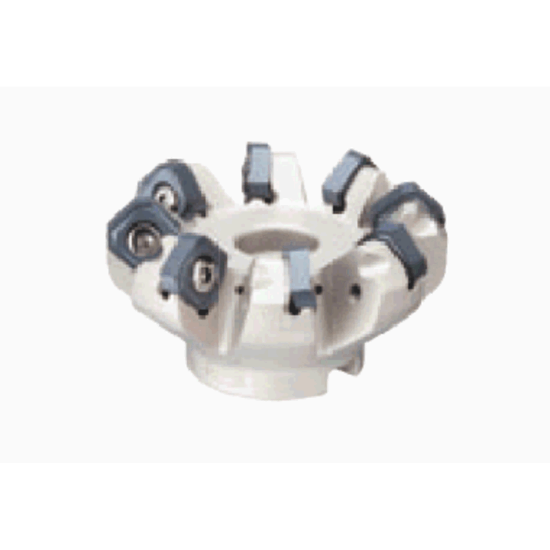

Picture of TUNGALOY TAN07R315M60.0E18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 2.3620 18 Flute

TUNGALOY TAN07R315M60.0E18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 2.3620 18 Flute

ANSI: TAN07R315M60.0E18

ISO: TAN07R315M60.0E18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6887623
Delivery date: 3-5 days
$2,402.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Feed Milling, Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 2.3622 60.00MM
Flutes/Inserts 18
Cutter Dia 12.4020 315.01MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2953
Cut Dia Min 12.4020 315.01MM
Cut Dia Max 12.9130 327.99MM
Tool Material Steel
Cutting & Machining Properties
Hand R/L Right
Insert Style ON,SN,OW
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7007497
