  • TUNGALOY TAN07R315M47.6-18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 1.8750 18 Flute

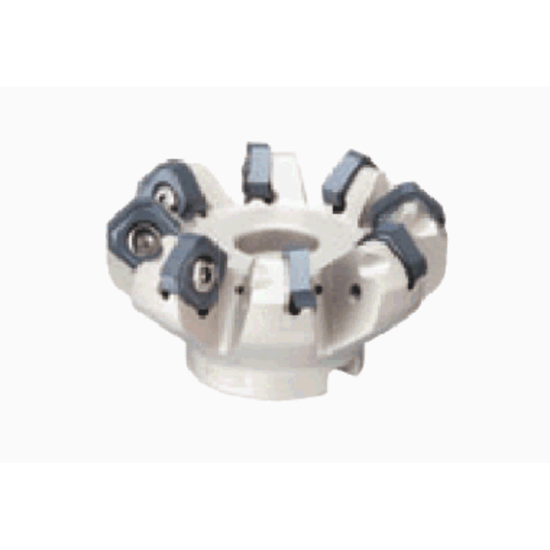

Picture of TUNGALOY TAN07R315M47.6-18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 1.8750 18 Flute

TUNGALOY TAN07R315M47.6-18 Milling Cutter 43.0°, 45.0° 12.40 Cutter Diameter Shell Arbor 1.8750 18 Flute

ANSI: TAN07R315M47.6-18

ISO: TAN07R315M47.6-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6887618
Delivery date: 3-5 days
$2,402.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Cut Dia Max 12.9130 327.99MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2953
Cut Dia Min 12.4020 315.01MM
Tool Material Steel
Cutter Dia 12.4020 315.01MM
Machine Side Connection Size 1.8750 47.63MM
Flutes/Inserts 18
Cutting & Machining Properties
Insert Style ON,SN,OW
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7007497
