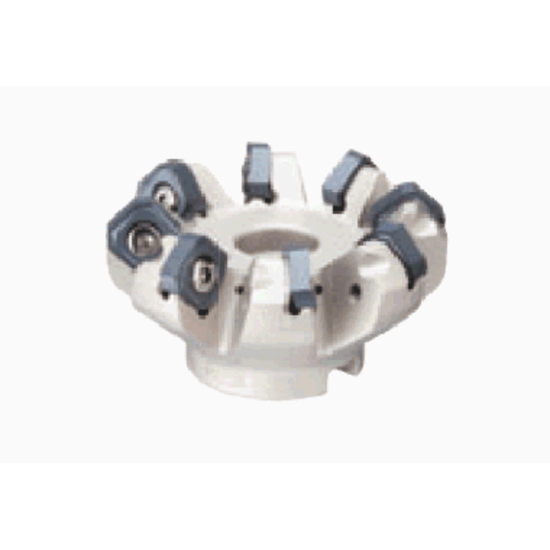

Picture of TUNGALOY TAN07R125M38.1-12 Milling Cutter 43.0° 4.921 Cutter Diameter Shell Arbor 1.5000 12 Flute

TUNGALOY TAN07R125M38.1-12 Milling Cutter 43.0° 4.921 Cutter Diameter Shell Arbor 1.5000 12 Flute

ANSI: TAN07R125M38.1-12

ISO: TAN07R125M38.1-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861810
Delivery date: 3-5 days
$1,454.65

Details

MILLING CUTTER HOLDING 3 DIFFERENT INSERT. MULTI CORNER DOUBLE SIDED INSERT SQUARE 8 CORNER, OCTAGONAL 16 CORNER FOR FACING AND FEEDMILLING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Feed Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2953
Tool Material Steel
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 12
Cut Dia Max 5.4330 138.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style ON,SN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7007497
