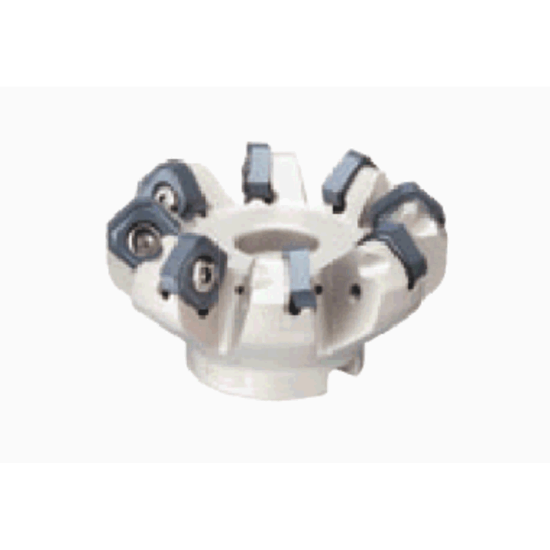

Picture of TUNGALOY TAN07R100M31.7-10 Milling Cutter 43.0° 3.937 Cutter Diameter Shell Arbor 1.2500 10 Flute

TUNGALOY TAN07R100M31.7-10 Milling Cutter 43.0° 3.937 Cutter Diameter Shell Arbor 1.2500 10 Flute

ANSI: TAN07R100M31.7-10

ISO: TAN07R100M31.7-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861809
Delivery date: 3-5 days
$1,241.15

Details

MILLING CUTTER HOLDING 3 DIFFERENT INSERT. MULTI CORNER DOUBLE SIDED INSERT SQUARE 8 CORNER, OCTAGONAL 16 CORNER FOR FACING AND FEEDMILLING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Package Size 1
Application Feed Milling, Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Flutes/Inserts 10
Depth Of Cut Max 0.2953
Cut Dia Max 4.4490 113.00MM
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru Yes
Insert Style ON,SN
Hand R/L Right
Fasteners & Connectors
Insert Screw 7007497
