  • TUNGALOY SYQBR2525M16 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

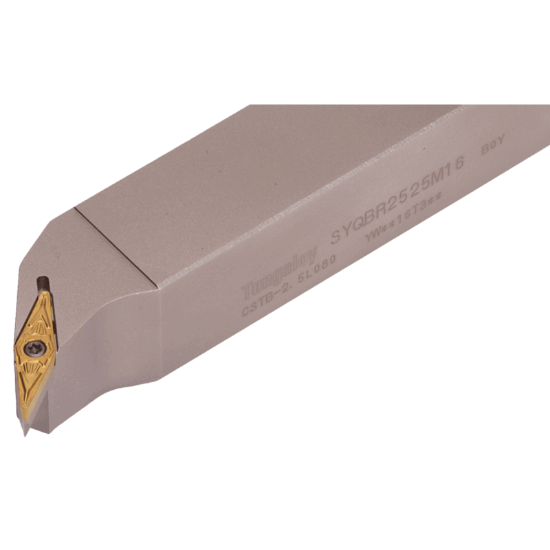

Picture of TUNGALOY SYQBR2525M16 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY SYQBR2525M16 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: SYQBR2525M16

ISO: SYQBR2525M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6855992
Delivery date: 3-5 days
$160.10

Important Notes

Posi,Q/H style, 45deg Approach

Details

Screw-on clamp toolholder with 122.5deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Overall Len 5.9055 150.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 122.5°
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 25.0°
Hand R/L Right
Insert Style YW
Inter/Extern External
