  • TUNGALOY SYQBL163 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 1.000 Shank

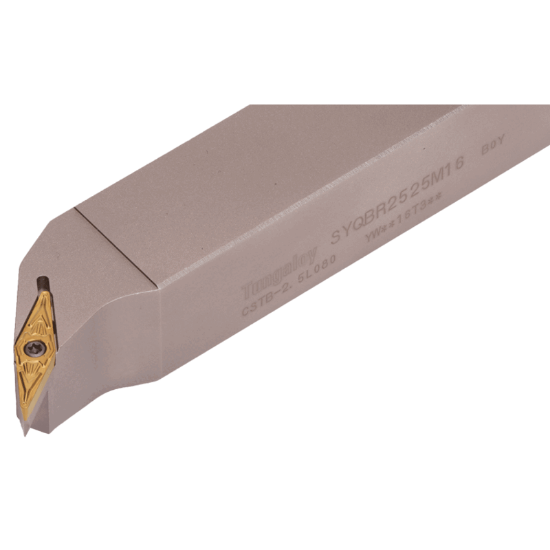

Picture of TUNGALOY SYQBL163 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 1.000 Shank

TUNGALOY SYQBL163 Stick Tool 25.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 1.000 Shank

ANSI: SYQBL163

ISO: SYQBL163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856587
Delivery date: 3-5 days
$160.10

Important Notes

Posi,Q/H style, 45deg Approach

Details

Screw-on clamp toolholder with 122.5deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Lead Angle 122.5°
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 30.0°
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape 25.0°
Insert Style YW
